REAR
FRONT
slalom waterski safety binding meeting alpine DIN specifications

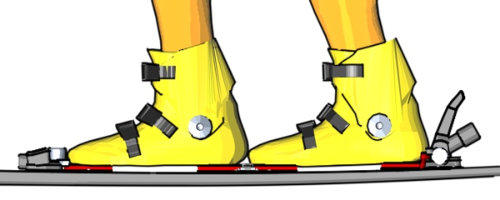

single boot will use front and rear
parts without DRA
the front part releases sideways at twisting
forces, the rear part upwards at a forward
force.
the longitudinal moveable double release
adapter (DRA) in the middle unlocks when
either boot is released.

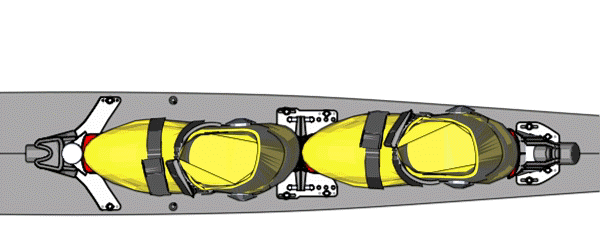

front boot off - DRA moves forward and
releases rear boot

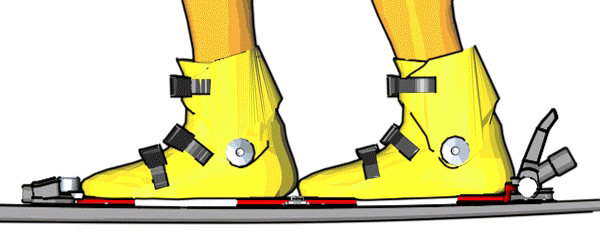

rear boot off - DRA moves backwards and
releases front boot

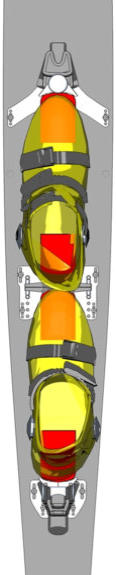

binding socket matching
plates also allow for
pivot
lenght compensation
within binding sockets
and edging fine adjust

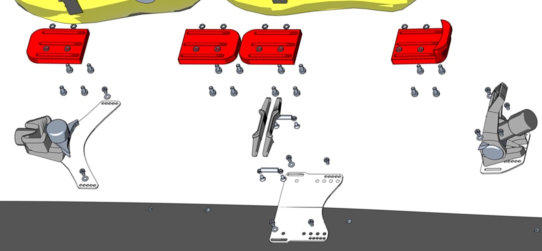

three separated attachment plates will fit most ski inserts.
there is no end to end plate to affect the flex of the ski.
FRONT
DRA
REAR
trigger was originally developed for a #02 Fischer and is now available to spinoff. imaginable as
stand alone for retrofit or exclusively for a ski brand. to combine trigger with a new ski model will
offer the benefit of a new flex design considering the minimized influence of the binding plates.
almost hundred years of experience made alpine ski bindings much safer than existing waterski
bindings. many bad injuries, especially from twisting forces can be avoided by elevating the
standards to this state of technology.
